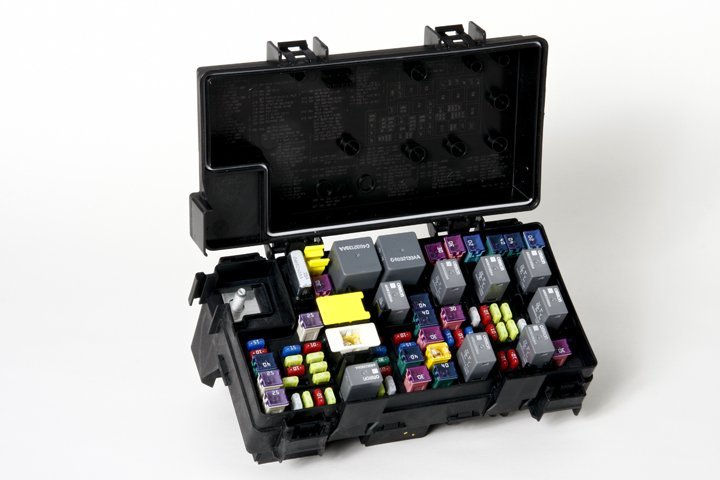

Power Distribution Centers

PKC Power Distribution Centers are designed to deliver power intelligently from the main vehicle power source to remote electrical systems throughout the vehicle.

Modular Power Distribution Centers

The Modular Power Distribution (mPDC) family consists of common components that can be assembled into various configurations. This enables the creation of custom PDCs with minimal customer tooling investment.

The mPDC family utilizes printed circuit board technology which optimizes power distribution within the device while minimizing the complexity of the vehicle wiring. Each component within the mPDC family is manufactured using Class 3 temperature rated (-40°C/+135°C) material and is validated for use on automotive, commercial transportation and recreational vehicle applications.

Compatible Serviceable Devices:

• Mini-fuses
• Diodes
• J-Case Fuses
• Poly-switches
• Circuit Breakers
• ISO Relays
• High Current Relays



Modular Blocks

The Modular Block family is comprised of individual fuse and relay modules that can be assembled in a variety of configurations. The Modular Block family offers customers flexible design solutions to meet serviceable device content requirements with minimal tooling investment. The Modular Block family consists of over 200 off-the-shelf components including fuse and relay blocks, brackets, top covers and bottom covers. Each component within the family is manufactured using Class 3 temperature rated (-40°C/+135°C) material and is validated for use on automotive, commercial vehicle and recreational vehicle applications.

Compatible Serviceable Devices:

• Mini-fuses
• Diodes
• J-Case Fuses
• Maxi-fuses
• Circuit Breakers
• ISO Relays
• High Current Relays
• 280 Series Relays
